170F-R / 170FD-R-168F SERIES-lifan

168F SERIES

Specifications

170F-H / 170FD-H

Engine type	4-stroke 25° inclined single-cylinder, air-cooled
Bore*stroke(mm)	70×58
Displacement(cc)	223
Compression ratio	8.5:1
Net power (kw/rpm)	5.0 (6.8) / 3600
Net torque (n.m/rpm)	14.5 / 2600
Ignition system	Non-contact transistorized ignition (TCI)
Starting system	Recoil hand-operated start / Electric start
Air cleaner	Semi-dry type / Oil-dry type
Oil capacity (L)	0.6
Fuel tank capacity(L)	3.6
Fuel consumption (g/kw.h)	≤370
Reducer mode	Not specified
Net weight (kg)	16 / 18
Carton dimensions <(LWH)mm>	415380380
QTY<20GP/40GP/40HQ>	510 / 1020 / 1190

Specifications

170F-2T / 170F-2T1

Specification	KP230-V / KP230E-V
Engine type	4-stroke 25° inclined single-cylinder, air-cooled
Bore*stroke(mm)	70×58
Displacement(cc)	223
Compression ratio	8.5:1
Net power (kw/rpm)	5.0 (6.8) / 3600
Net torque (n.m/rpm)	14.5 / 2600
Ignition system	Non-contact transistorized ignition (TCI)
Starting system	Recoil hand-operated start / Electric start
Air cleaner	Semi-dry type / Oil-dry type
Oil capacity (L)	0.6
Fuel tank capacity(L)	3.6
Fuel consumption (g/kw.h)	≤370
Reducer mode	Not specified
Net weight (kg)	16 / 18
Carton dimensions <(LWH)mm>	415×380×380
QTY<20GP/40GP/40HQ>	510 / 1020 / 1190

Specifications

170F-T / 170FD-T

Engine type	4-stroke 25° single-cylinder with air cooled
Bore*stroke (mm)	70mm*55mm
Displacement	212ml
Compression ratio	8.2:1
Max power output	5.6 kw/3600rpm
Recommended power using	4.6 kw/3600rpm
Max torque	13.5N.m/2500rpm
Ignition system	Non-contact transistorized ignition(TCI)
Start model	Recoil and hand-operated/Electric
Air cleaner	Semi-dry or oil bath type
Fuel tank capacity	3.6L
Fuel consumption	374g/kw.h
Engine oil capacity	0.6L
Dry weight	15kg / 17kg
Carton dimension (LWHmm)	415380405
QTY 数量 / 20GP	395
QTY 数量 / 40GP	850
QTY 数量 / 40HQ	1020

About Lifan

Lifan Internal Combustion Engine Co., Ltd. is a diversified manufacturer and seller of general machinery products, covering power engines, generator sets, outdoor power supplies and other related products.

We are committed to delivering high-quality products and premium services to meet diverse customer needs.

Contact

Tel: +86 23 61883464

Email: europe@lifan.com(Europe)，latinamerica@lifan.com(Latin America)，northamerica@lifan.com(North America)，jiazhifu@lifan.com(Asia/Middle East/Africa)

Address: No.2,Huanghuan North Road,Jinshan Avenue,North New District,Yubei District,Chongqing

Bore × Stroke (mm)	70*54mm
Displacement (cc)	208ml
Rated Power [kW(HP)]	7.5kw/5800rpm
Max Torque (N.m)	13.5N.m/4500rpm
Idle Speed (r/min)	1600rpm
Specific Fuel Consumption (g/kW·h)	≤420g/kW·h
Lube Oil Capacity (L)	0.55L
Lube Oil Grade	15W/40
Engine Dimension (L×W×H) (mm)	404313348
Net Weight (kg)	16kg

168F SERIES

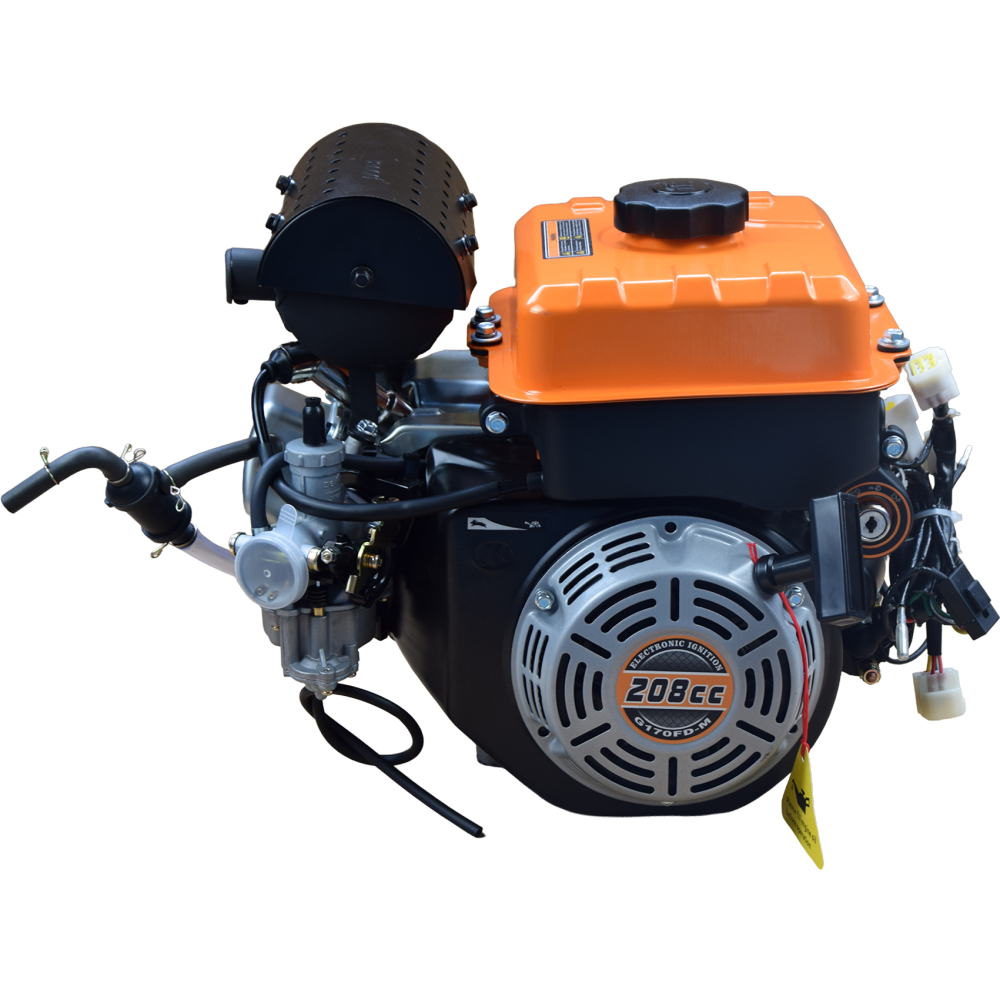

G170FD-M

170F-R / 170FD-R

170F-L / 170FD-L

170F-H / 170FD-H

170F-2T / 170F-2T1

170F-T / 170FD-T

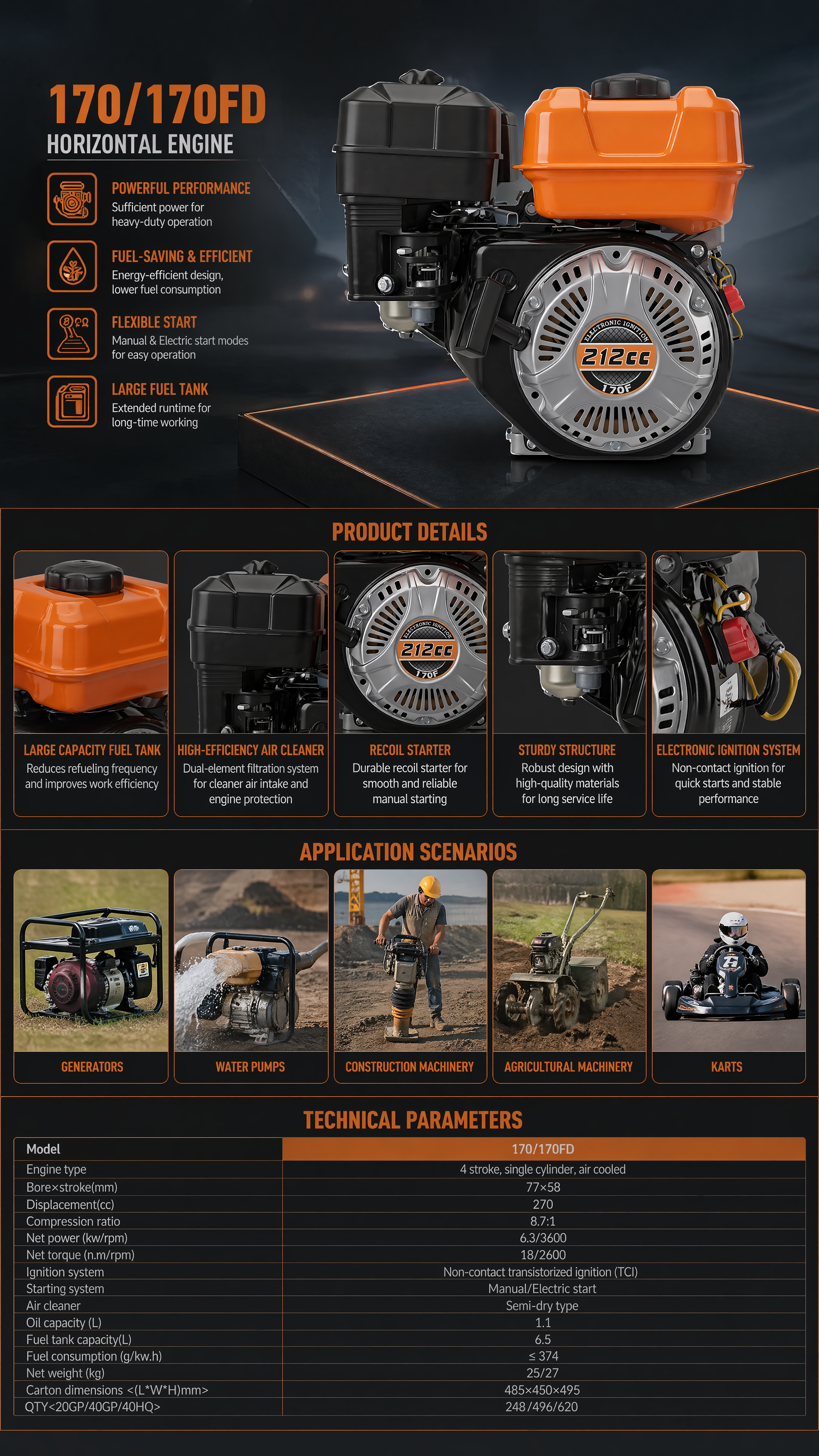

170 / 170FD

168F-2 / 168F-2D

Follow Us

About Lifan

Contact

Engine type	4 stroke, single cylinder, air cooled
Bore*stroke(mm)	70*55
Displacement(cc)	212
Compression ratio	9:01
Net power (kw/rpm)	4.6/1800
Net torque (n.m/rpm)	26/1400
Ignition system	Non-contact transistorized ignition (TCI)
Starting system	Manual/Electric start
Air cleaner	Semi-dry type
Oil capacity (L)	0.6
Fuel tank capacity(L)	3.6
Fuel consumption (g/kw.h)	≤374
Reducer mode	R
Net weight (kg)	18/20
Carton dimensions <(LWH)mm>	415380380
QTY<20GP/40GP/40HQ>	504/1020/1190

Engine type	4 stroke, single cylinder, air cooled
Bore×stroke(mm)	70×55
Displacement(cc)	212
Compression ratio	9:01
Net power (kw/rpm)	4.6/3600
Net torque (n.m/rpm)	13/2800
Ignition system	Non-contact transistorized ignition (TCI)
Starting system	Manual/Electric start
Air cleaner	Semi-dry type
Oil capacity (L)	0.6
Fuel tank capacity(L)	3.6
Fuel consumption (g/kw.h)	≤ 374
Net weight (kg)	16/18
Carton dimensions <(LWH)mm>	415380405
QTY<20GP/40GP/40HQ>	510/1020/1190
